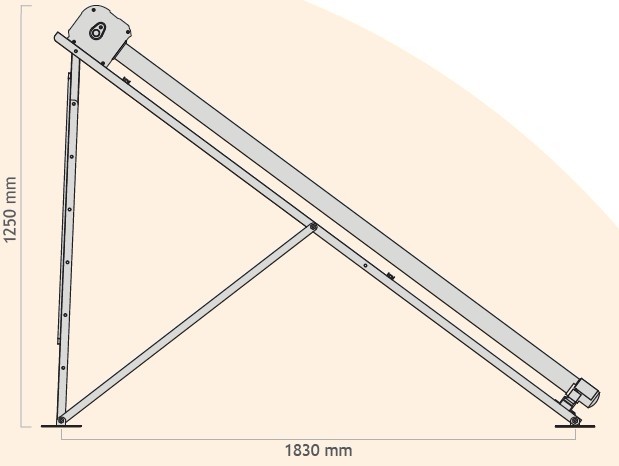

WT-B58 Solar Collector 22 tubes
Product classification：
WT-B58 Solar Collector is a kind of solar collector, It used with heat
preservation water tank, solar power workstation and the pipe. The solar collector is consisted of super
conducting vacuum heat collecting tube and header, so it's of great efficie
Toll Free Tel:+400-820-8525
Product Description

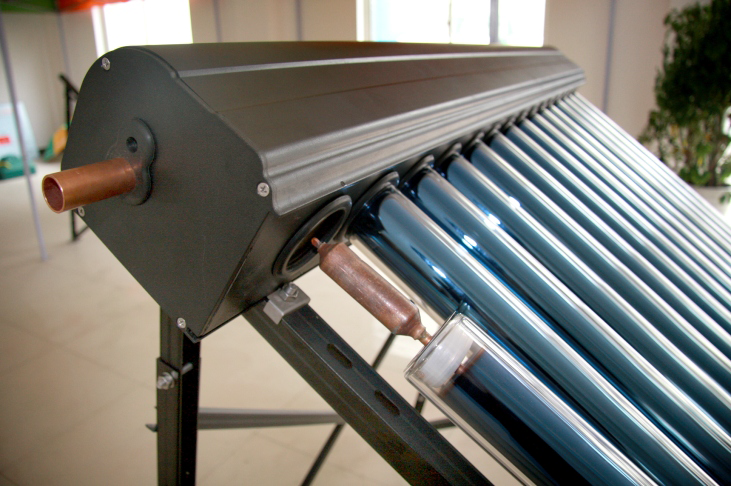

WT-B58 Solar Collector is a kind of solar collector, It used with heat preservation water tank, solar power
workstation and the pipe. The solar collector is consisted of super conducting vacuum heat collecting tube and
header, so it's of great efficiency of heat collecting. The absorbing percentage of the glass vacuum
collector is more than 94%. WT-B58 Solar Collector In the sunny days of spring or autumn, each collecting tube
could make the water up to 90 degrees centigradeonly in 2.5 hours.
Characteristics:
Material of Manifold: Aluminum
Material of Frame : Aluminum
Material of header pipe; Copper
Insulation Material : Rock Wool
Best Working angle : 20 degree to 70 degree
Max. Operating Pressure : 8 bar
Best Flux: 0.15liter/min/tube
Performance : Transferring : ho=0.715
Max. Stagnation Temp: 245 ℃/ 477 F
Absorber type: ALN/ALN-SS/SU on glass
|
Model |
Net Absorbing Area ( m2） |
Gross Area (m2) |
(empty) Gross Weight ( KG ) |
Head fluid content ( L ) |
17MJ/M2 day warm up 45 ℃ hot water output ( L) |
|
WT-B58-10 |
0.85 |
1.85 |
37 |
1.00 |
100 |
|
WT-B58-15 |
1.25 |
2.75 |
50 |
1.50 |
150 |
|
WT-B58-18 |
1.50 |
3.30 |
62 |
1.80 |
180 |
|
WT-B58-20 |
1.60 |
3.50 |
72 |
2.00 |
200 |
|
WT-B58-22 |
1.80 |
3.68 |
82 |
2.20 |
220 |
|
WT-B58-24 |
2.00 |
4.20 |
90 |
2.40 |
240 |
|
WT-B58-30 |
2.45 |
5.10 |
110 |
3.00 |
300 |

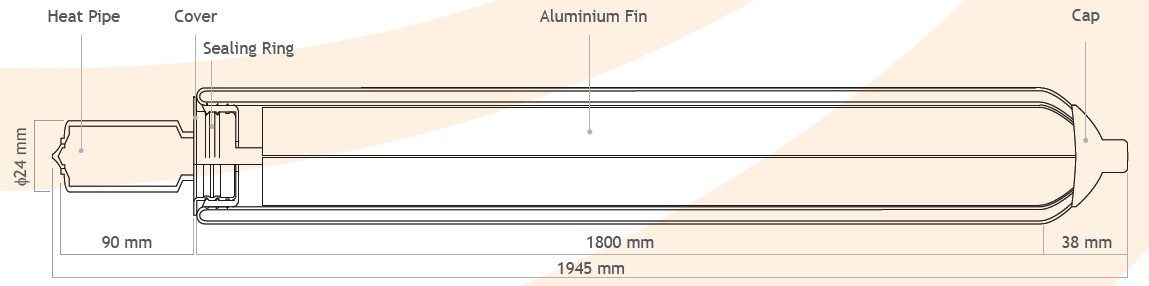

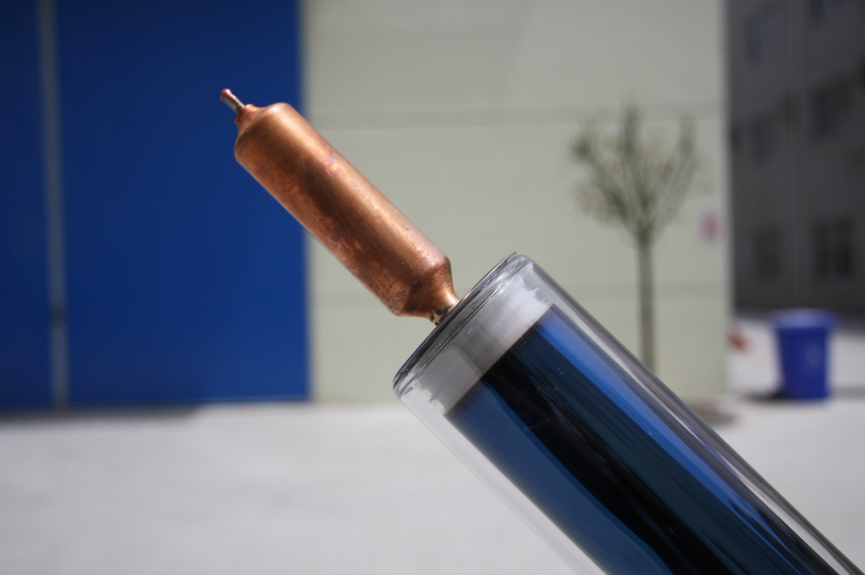

With WT-B58 58x1800mm evacuated heat pipe vacuum
tube
Technical Data:
|
Model |
WT-B58 |
|
Size of Condenser |
24*90mm |
|
Length of glass tube |
1800mm |
|
Outer tube diameter |
58mm |
|
Inner tube diameter |
47mm |
|
Glass thickness |
1.6mm/2.0mm |
|
Glass material |
Borosilicate Glass 3.3 |
|
Absorptive coating |
ALN/ALN-SS/CU |
|
Absorption coefficient |
>92% |
|
Emission coefficient |
<8% |
|
Vacuum |
P<3.5*10 -3 Pa |
|
Freezing resistance |
-35 ℃ |
|
Stagnation temperature |
>220 ℃ |
|
Net Weight |
2.70 kg |
|
Hot Water Output (17mj/m2. Day =45 ℃） |
10 L |
