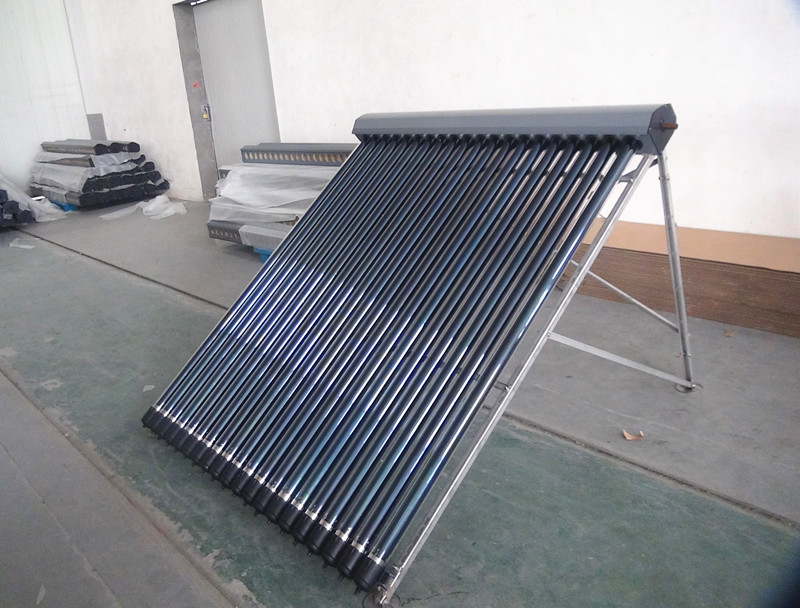

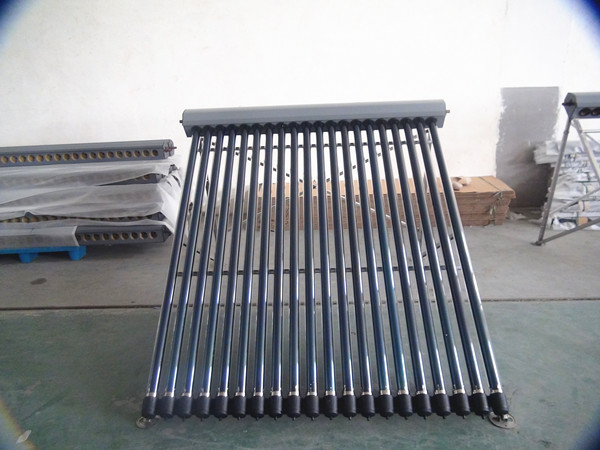

Model : SP-S58 Characteristics: Material of Manifold: Aluminum Material of
Frame : Stainless Steel Material of header pipe; Copper Insulation Material : Rock Wool Best Working
angle : 20 degree to 70 degree Max. Operating Pressure : 8 bar B
Toll Free Tel:+400-820-8525
| Model | Net Absorbing Area ( m2） | Gross Area (m2) | (empty) Gross Weight ( KG ) | Head fluid content ( L ) | 17MJ/M2 day warm up 45 ℃ hot water output ( L) |
| SP-S58/1800A-10 | 0.85 | 1.85 | 37 | 0.65 | 90 |
| SP-S58/1800A-15 | 1.25 | 2.75 | 50 | 0.90 | 135 |
| SP-S58/1800A-18 | 1.50 | 3.30 | 62 | 1.10 | 160 |
| SP-S58/1800A-20 | 1.60 | 3.50 | 72 | 1.20 | 180 |
| SP-S58/1800A-22 | 1.80 | 3.68 | 82 | 1.30 | 200 |
| SP-S58/1800A-24 | 2.00 | 4.20 | 90 | 1.50 | 215 |
| SP-S58/1800A-30 | 2.45 | 5.10 | 110 | 1.90 | 270 |

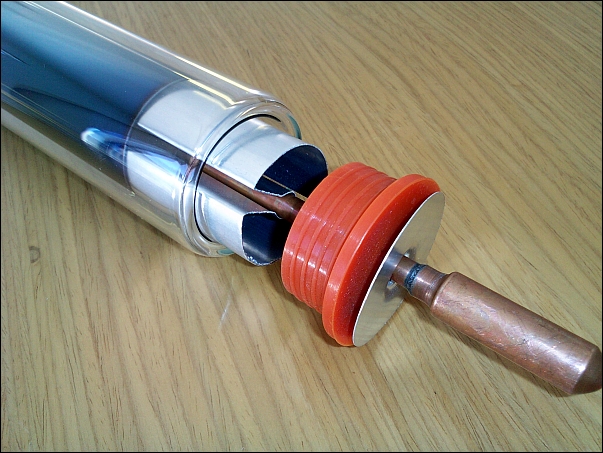

| Model | SP-TT58 |
| Size of Condenser | 14*64.5mm |
| Length of glass tube | 1800mm |
| Outer tube diameter | 58mm |
| Inner tube diameter | 47mm |
| Glass thickness | 1.6mm/2.0mm |
| Glass material | Borosilicate Glass 3.3 |
| Absorptive coating | ALN/ALN-SS/CU |
| Absorption coefficient | >92% |
| Emission coefficient | <8% |
| Vacuum | P<3.5*10 -3 Pa |
| Freezing resistance | -35 ℃ |
| Stagnation temperature | >220 ℃ |
| Net Weight | 2.70 kg |
| Hot Water Output (17mj/m2. Day =45 ℃） | 9 L |
