WesTech Single Enamel Coil Solar Water Tank
Product classification：
Storage tank (with single steel heat exchanger) offer many particularly
impressive technical benefits. Large heat exchanger areas make them more efficient than conventional
stroage tank technology . The Polyurethane foam insulation is 100%
Toll Free Tel:+400-820-8525
Product Description
Storage tank (with single steel heat exchanger) offer many particularly impressive
technical benefits. Large heat exchanger areas make them more efficient than conventional stroage tank
technology . The Polyurethane foam insulation is 100% CFC free and Guarantees minimal heat losses.

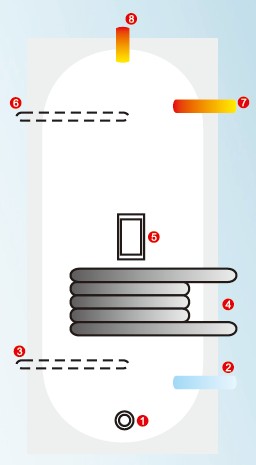

①Drain Valve
②Cold Water Inlet
③Temperature Sensor(bottom)
④Heat Exchange Coil(bottom)
⑤Electric Heater
⑥Temperature Sensor(top)
⑦Hot Water Outlet
⑧T/P Valve
Specification：
1. inner boiler enamelled according to DIN 4753 and WaterMark
2.Operating pressure max. 10 bar
3.Operating temperature max 90 degree
4.Energy-saving, directly applied polyurethane foam insulation 50mm
(CFC-free)
5.Compatible with potable water
|
Model
|
100
|
150
|
200
|
250
|
300
|
400
|
500
|
|
Nominal capacity (L)
|
100
|
150
|
200
|
250
|
300
|
400
|
500
|
|
Heat Exchanger Area (m2)_
|
0.95
|
0.95
|
1.25
|
1.4
|
1.4
|
1.4
|
1.7
|
|
Heat Exchanger Length (m)
|
12
|
12
|
16
|
14
|
14
|
14
|
17
|
|
Heat Exchanger Material
|
25*2.0 steel pipe with
enamel Coating
|
32*2.0 steel pipe with
enamel Coating
|
|
Temperature setting range ( c)
|
49-82
|
|
Default temperature ©
|
65+-/5
|
|
Mixed water volume 40 c (L)
|
190
|
280
|
390
|
480
|
580
|
775
|
950
|
polyurethane insulation
Thickness (mm)
|
40
|
50
|
|
Connected load 220V-240V
|
1.5/2/2.5/3/4/5
|
|
Height (mm)
|
1114
|
1185
|
1516
|
1270
|
1520
|
1575
|
1925
|
|
Diameter (mm)
|
450
|
520
|
520
|
620
|
620
|
710
|
710
|
|
Weight (Kg)
|
58
|
63
|
73
|
90
|
100
|
117
|
138
|
|
Color
|
Beige/Grey/Silver
|
|
Test Pressure (Mpa)
|
17
|
|
Operation Pressure (Mpa)
|
8.5
|
|
Packing Size (mm)
|
480*480*1200
|
550*550*1275
|
550*550*1605
|
655*655*1365
|
655*655*1615
|
740*740*1675
|
740*740*2015
|
