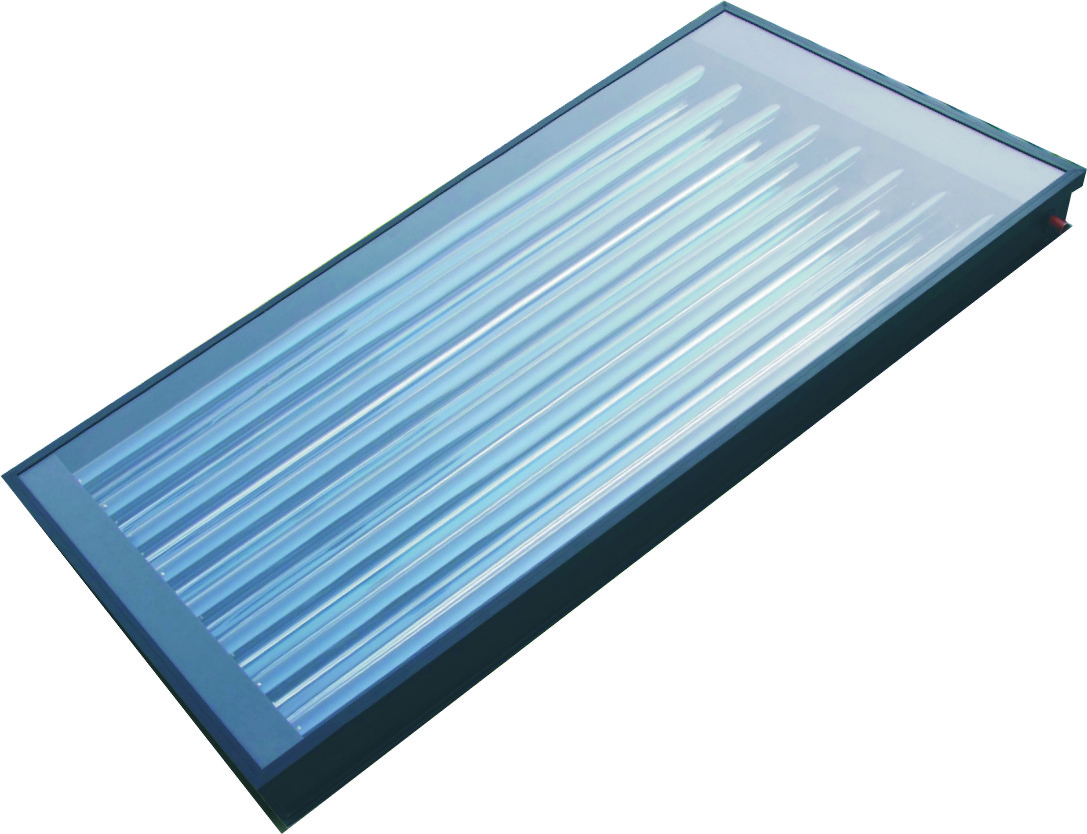

WT-TF-2 Tube-type Flat Panel Collector
Heat Pipe Flat Panel Collector
Patent design, tubes in the flat, combine the advantage of tube
collector
and flat-panel collector.
* High temperature (stagnation 300, higher efficiency than normal
collectors).
* Easy to clean the snow. Don't worry about being impacted by the
hailstones.

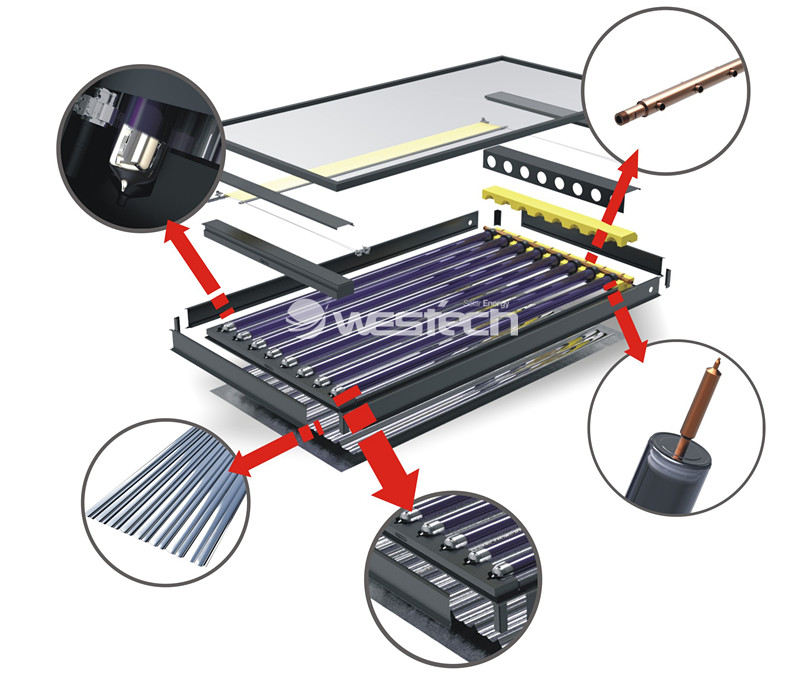

Structure:

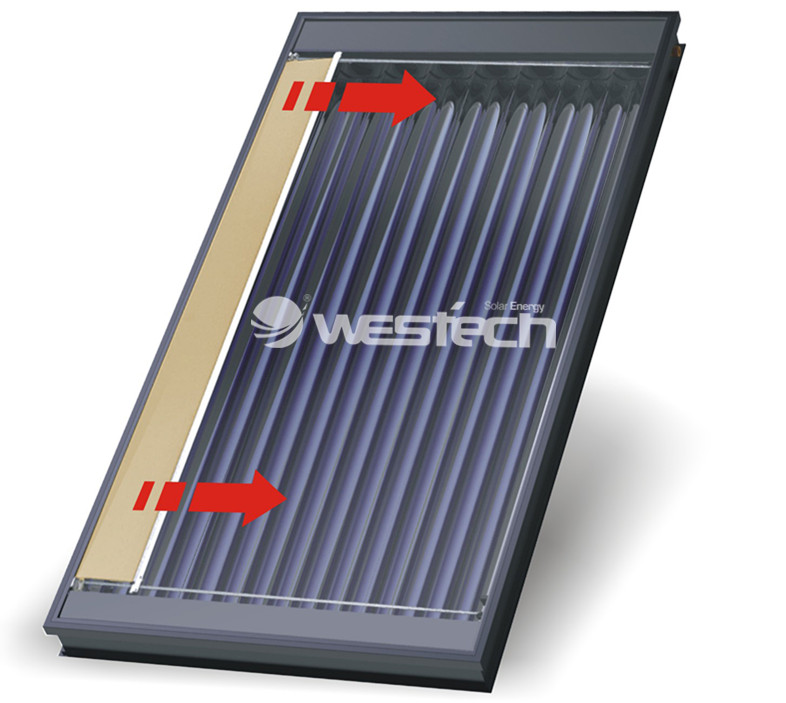

Heat Pipe Flat Panel Collector
Patent design, tubes in the flat, combine the advantage of tube
collector
and flat-panel collector.
* High temperature (stagnation 300, higher efficiency than normal
collectors).
* Easy to clean the snow. Don't worry about being impacted by the
hailstones.
* Easy to carrying and Installation cost saving.

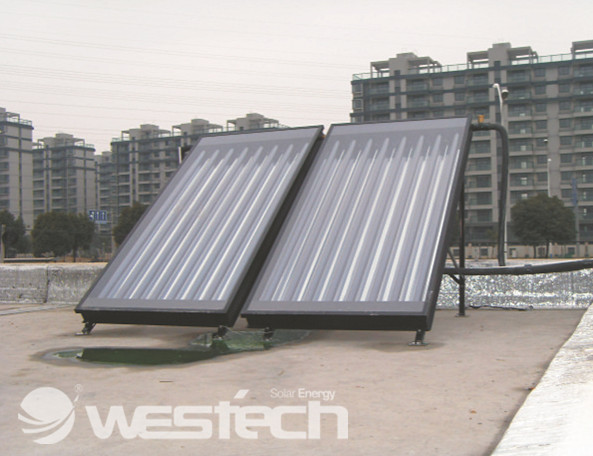

* Unique detachable frame enable to install on the roof or in the roof.
* CPC reflector below evacuated tubes makes full use of the tube absorber.
* Built-in automatic shadow to prevent the over-heating during summer and winter
Technical Data :
| Model | WT-TF-2 |
| Type | Tube-in -flat Panel |

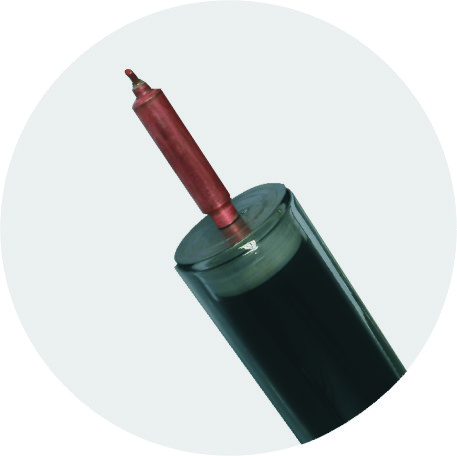

| Flowed through element | Heat pipe |
| Number of tubes | 8 |
| Weight empty | 58 kg |
| Flow range | 50-1200L/h |
| Rated flow rate | 90 L/h |
| Gross Size | 1.981m*1.010m |
| Aperture Area | 1.651 m2 |
| Fluid capacity | 0.9 L |
| Max. Temperature | 300 degree |
| Max. Operating pressure | 6 bar |
