Product Description

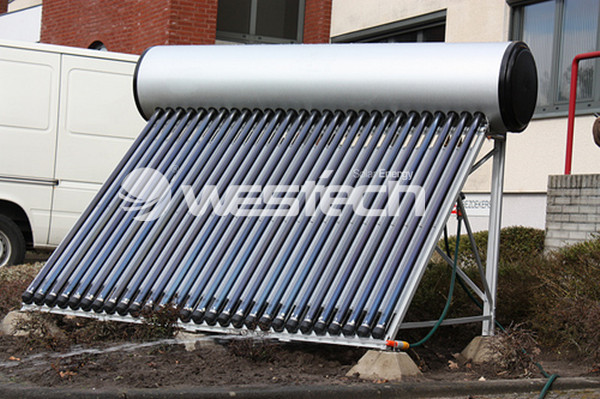

WT-CS470-58/1800 Compact Pressurized Solar Heater

Compact Pressurized Solar Heater Feature:
◆Highly efficient absorber of high performance with daily average efficiency over 50%;
◆Start up quickly, heat pipe transfer the heat energy into the storage tank in one direction.
◆Withstand pressure of 6 Bar, can be connected directly with city water.
◆No water inside the evacuated tubes; the solar water heater can still in service even with several
tubes breakage;


Compact Pressurized Solar Heater Feature:
◆Highly efficient absorber of high performance with daily average efficiency over 50%;
◆Start up quickly, heat pipe transfer the heat energy into the storage tank in one direction.
◆Withstand pressure of 6 Bar, can be connected directly with city water.
◆No water inside the evacuated tubes; the solar water heater can still in service even with several
tubes breakage;
◆Highly efficient insulation with polyurethane foam;
◆Simple structure, easy to assembly and install, diffuse flat plate reflector can be assembled easily
with its module structure;
◆Can be used all year round in the cold climate;
◆Can be used together with Auxiliary electric boost;
◆Long service life, can be used as long as 15 years.

Specifications:
◆Material of storage tank
◆Outer tank: colorful steel, 0.4mm thickness
◆Inner Tank: SUS304, 1.5 mm
◆thick Insulation Polyurethane foam, 50 mm
◆working pressure: 6Bar
◆Daily efficiency: ≥55% (≥42% in winter)
◆working temperature :60°C ~ -35°C
◆vacuum tube specifications: 58mm*1800mm
◆lifetime:15 years
◆inlet/outlet：3/4″
