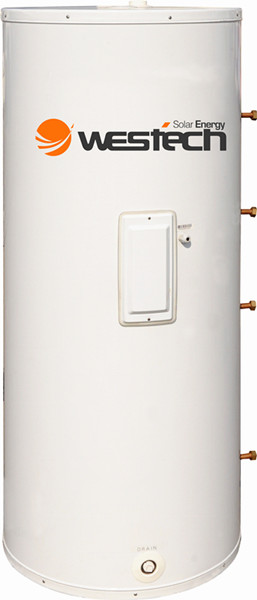

WesTech Double Enamel Coil Solar Water Tank
Product classification：
Storage tank (with double steel heat exchangers) are superior to heating
systems that use conventional fuels in many regards. Because there is an endless supply of solar energy,
they save on heating cost on a lasting basis. During the bad w
Toll Free Tel:+400-820-8525
Product Description
Storage tank (with double steel heat exchangers) are superior to heating
systems that use conventional fuels in many regards. Because there is an endless supply of solar energy,
they save on heating cost on a lasting basis. During the bad weather, the gas booster will begin to
work. It can provide you the instant hot water through the other heat exchanger.

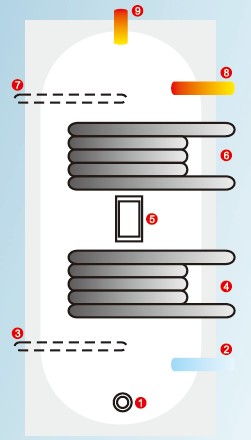

①Drain Valve
②Cold Water Inlet
③Temperature Sensor(bottom)
④Heat Exchange Coil(bottom)
⑤Electric Heater
⑥Heat Exchange Coil(top)
⑦Temperature Sensor(top)
⑧Hot Water Outlet
⑨T/P Valve
Specification：
1.Can be combined with a wide range of heating system .
2. inner boiler enamelled according to DIN 4753 and WaterMark
3.Operating pressure max. 10 bar
4.Operating temperature max 90 degree
5.Energy-saving, directly applied polyurethane foam insulation 50mm
(CFC-free)
6.Compatible with potable water
|
Model |
200 |
300 |
400 |
500 |
|
Nominal capacity (L) |
200 |
300 |
400 |
500 |
|
Heat Exchanger Area (m2) |
1
1 |
1
1.5 |
1.2
1.7 |
1.2
1.7 |
|
Heat Exchanger Length (m) |
10
10 |
10
14.5 |
11.5
16.5 |
11.5
16.5 |
|
Heat Exchanger Material |
32*2.0 steel pipe with
enamel Coating |
|
Temperature setting range ( c) |
49-82 |
|
Default temperature © |
65+-/5 |
|
Mixed water volume 40 c (L) |
385 |
575 |
770 |
945 |
polyurethane insulation
Thickness (mm) |
40 |
50 |
|
Connected load 220V-240V |
1.5/2/2.5/3/4/5 |
|
Height (mm) |
1516 |
1520 |
1575 |
1925 |
|
Diameter (mm) |
520 |
620 |
710 |
710 |
|
Weight (Kg) |
85 |
115 |
137 |
147 |
|
Color |
Beige/ Grey/ Silver |
|
Test Pressure (Mpa) |
17 |
|
Operation Pressure (Mpa) |
8.5 |
|
Packing Size (mm) |
550*550*1605 |
655*655*1615 |
740*740*1675 |
740*740*2015 |
